X-A220EVO

POWER & FINESSE

Our new X-A220EVO monophonic power amplifier delivers a power of 220W. It is ideally combined with our X-P500 preamplifier to form a highly musical hi-fi system. Our technical mastery combined with the most «audiophile» possible design of our circuits allow us to achieve high level performance at a competitive price.

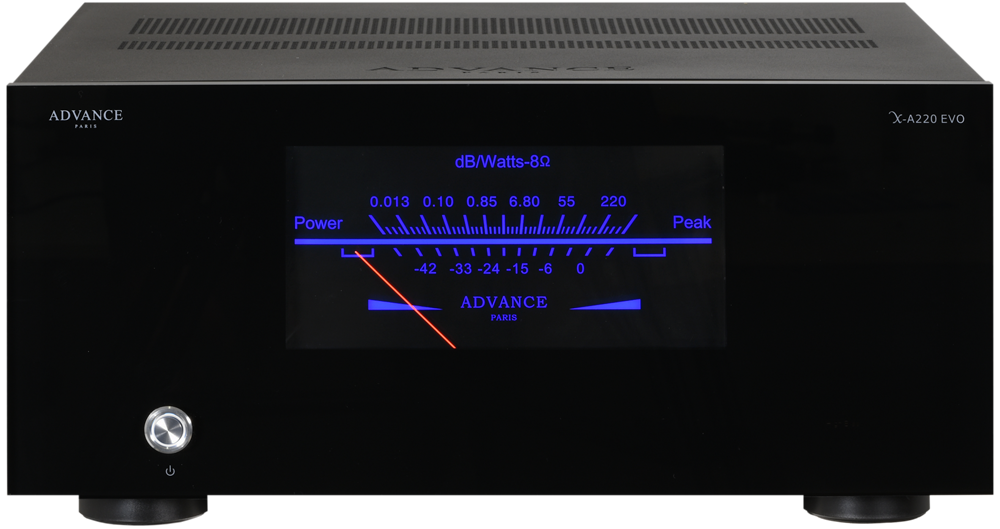

Construction: The steel frames have an impeccable finish. The addition of methacrylate facades enhances their successful aesthetics, while by providing a significant ergonomic dimension, thanks to an imposing view-meter. The internal layout is rational and compartmentalized. This judicious arrangement of the different sub-assemblies is accompanied a choice of quality components, welded on separate PCBs and partitioned by function. The X-A220EVO owes its thickness to the height power transistor heat sink with generous dimensions.

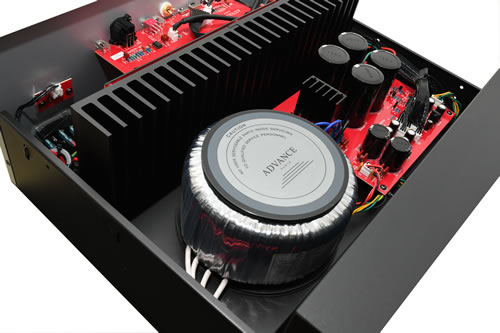

The X-A220EVO has a 700 VA toroidal transformer. After rectification, four capacitors of 10,000 µF / 80 V smooth the direct current.
An NE5532 operational amplifier is shown on the input board with balanced and unbalanced switch.
The power stages call for to a triple push-pull of complementary NJW0281G / NJW0302G transistors, delivering up to 220 W / 8 ohms in class AB. The amplifier can operate in two modes accessible via a switch: when the function «High Bias» is engaged, the X-A220EVO operates in «class A» on the first
watts then automatically slides into class AB.

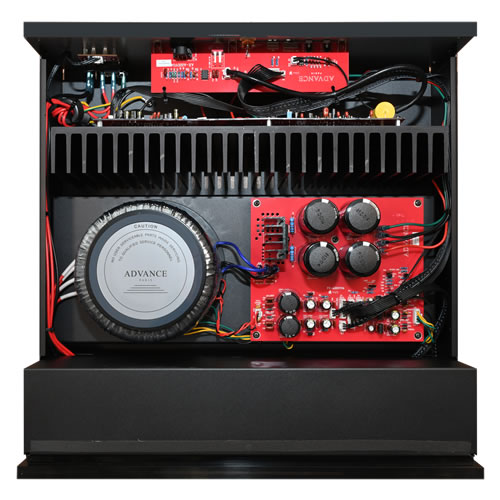

Compartmentalized design, ultra-rigid frame and components selected for optimum results.

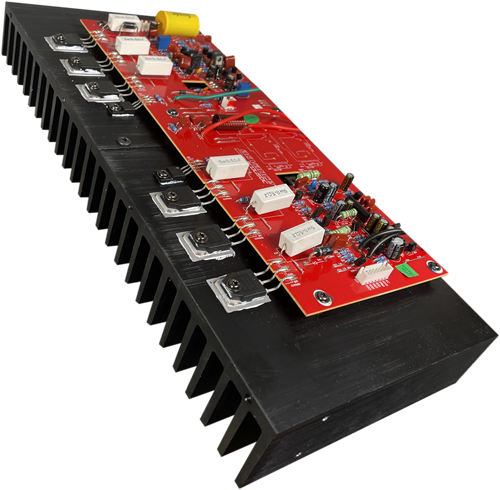

Triple push-pull transistors attached to a large radiator to ensure perfect heat dissipation.

SPECIFICATIONS
Power output 8 Ω : 1 X 220 W RMS
Power output 4 Ω : 1 X 350 W RMS
Frequency response : 10 Hz – 80 kHz
Distortion < 0,08%
Signal/Noise ratio : > 100 dB
Channel separation > 80 dB
Input impedance : 32KΩ (Unbalanced)
Input impedance : 38KΩ (Balanced)
AC Input : 115V/230V (Auto switching)
Standby power consumption : < 0,5W
Power consommation max : 500W
Power transformer : 700W
Toroïdal transformer
Dimensions : H.20 cm x W.43 cm x D.45 cm
Net Weight : 21 kg
