MyConnect 60 Black
Simply the best
The MyConnect 60 is an audiophile All-in-One with a built-in 2x60W amplifier, a wifi and ethernet network player, a DAB+ / FM tuner, a CD player, an USB reader and a Bluetooth receiver.
In order to offer music lovers an optimum musical reproduction, our engineers have chosen to integrate an amplifier in class AB, thus synthesizing the best of class A and class B together. This singular choice for an integrated product guarantees a very high quality of sound reproduction. (Most competing products are in class D.)
The amplifier is the heart of your high-fidelity system, it is the one that has the heavy task to drive your speakers, to extract their quintessence. It must bring neutrality, detail, dynamics and clarity of the sound message. The choice of class AB proved to be an obvious choice.
The MyConnect 60 incorporates a network audio player. You can play your own music from your PC / MAC, NAS but also from your smartphone or tablet and other media.
The MyConnect 60 is fully compatible with Airplay and DLNA. You also can enjoy streaming services such as Spotify, Deezer, Tidal, Qobuz, Tune-In , Internet radios via TuneIn, iHeart radio and much more. The MyConnect 60 has an open interface with scalable capacity for future services and evolutions.
This network player is multi-room, you can play different music in different rooms. The whole family can enjoy their own music for example listen to the radio in one room and your own music in another. The possibilities are limitless.
Android and IOS apps available. * Smartphone not included
Connectivity and technology

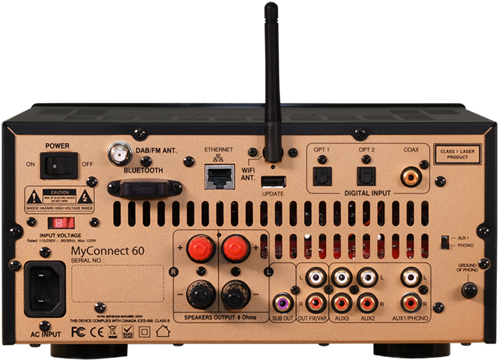

The MyConnect 60 offers a full connectivity: three stereo analog inputs including a switchable MM phono input for vinyl lovers, two optical SPDIF inputs and a coaxial SPDIF input, a Bluetooth and USB-A input, a fixed PRE-OUT output or variable, and a SUB output for connecting an active subwoofer.
The speaker output is provided by four screw terminals allowing a direct connection of the speaker wires or the use of banana sockets. Your MyConnect 60 is updatable ! Thanks to the USB Upgrade port on the rear panel. On the network side, it provides an Ethernet port for a wired connection (LAN) or wireless WiFi (WLAN).
The technologies employed in both analog and digital processing of the audio signal have a unique goal, that is to reproduce the music as faithfully as possible.
The audio signal path is as direct as possible to avoid any alteration. Regarding the digital signal, the TI PCM DAC converter was chosen for its excellent performance.

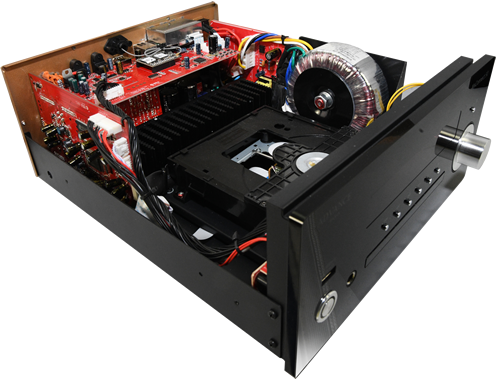

The oversized power supply is based on a powerful toroidal transformer to power the class AB power amplifier with comfort.
SPECIFICATIONS
POWER OUTPUT 48/70 Watts CLASS AB 4Ω/8Ω
OUTPUT LEVEL Unbalanced 2 volts
FREQUENCY RESPONSE (+/-3dB) 20Hz – 45 kHz
DISTORTION < 0.1%
OUTPUT IMPEDANCE 10KΩ
CHANNEL SEPARATION > 110dB
S/N RATIO > 92dB
DAC DIGITAL Ti PCM
AC INPUT 115 or 230V
POWER CONSUMPTION MAX Max 30W
DIMENSIONS H. 136 x l. 265 x D. 385
NET WEIGHT 5,5 kg
